Extract air valve - KU Ø100 mm

The limited height of the NilAIR valves means that they are not very noticeable once installed. The extract air valves are installed in rooms that regularly have high humidity levels such as bathrooms, lavatories, kitchens and utility rooms. The humid and vitiated air will then be extracted from the building via the valves.

The extract air valves are mounted in NilAIR extract air boxes that can be installed in the ceiling or wall.

Material Steel, white powder coating RAL 9010
Size Ø100 mm
Valve mounting frame Included

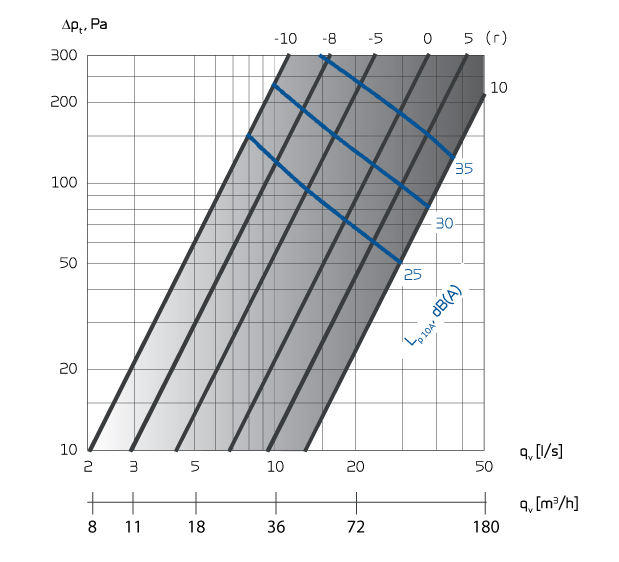

Pressure loss and sound curve for supply air valve KU Ø100 mm.
