Nilan Soundflex

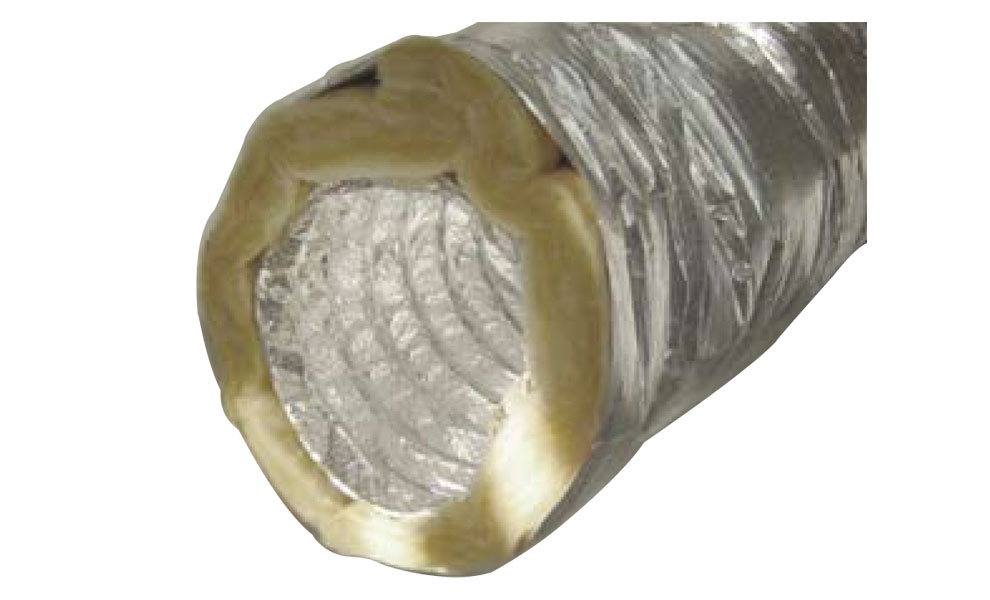

Flexible sound absorber that forms a simple and easy connection between the unit and the manifold boxes or duct system. It is also suitable to use between the unit and the discharge/outdoor air intake in order to block noise from the roof stack.

The perforated, internal duct absorbs sounds that arise in the ventilation unit via the fans, and it is very efficient.

The insulation protects the air in the duct from its surroundings. As a result, when cooled down, there is no condensation. The insulation itself is protected from erosion by a layer of film.

Internal duct Perforated laminated aluminium polyester
Anti-erosion Closed film from polyester
Reinforcing coil Tread with 36 mm gaps
Insulation 25 mm glass wool, 16 kg/m3
External duct Laminated aluminium polyester reinforced with glass wool
Ambient temperature -30 / 140 ºC
Max. air pressure 2500 Pa
Max. air speed 30 m/s
Min. bending radius 25 + (0,54 x Ø) mm

Silencing (dB) 1 m tube

HZ Ø100 Ø125 Ø160 Ø200
125 9 12 17 7
250 19 20 22 15
500 32 21 22 17
1.000 37 25 27 20
2.000 31 29 19 16
4.000 21 17 14 13



Silencing (dB) 2 m tube

HZ Ø100 Ø125 Ø160 Ø200
125 19 17 31 20
250 33 31 39 34
500 52 44 34 32
1.000 53 45 38 35
2.000 49 46 31 30
4.000 36 26 20 22



Silencing (dB) 3 m tube

HZ Ø100 Ø125 Ø160 Ø200
125 25 23 29 18
250 39 46 43 40
500 50 44 41 38
1.000 52 47 46 41
2.000 54 51 39 39
4.000 40 34 27 30

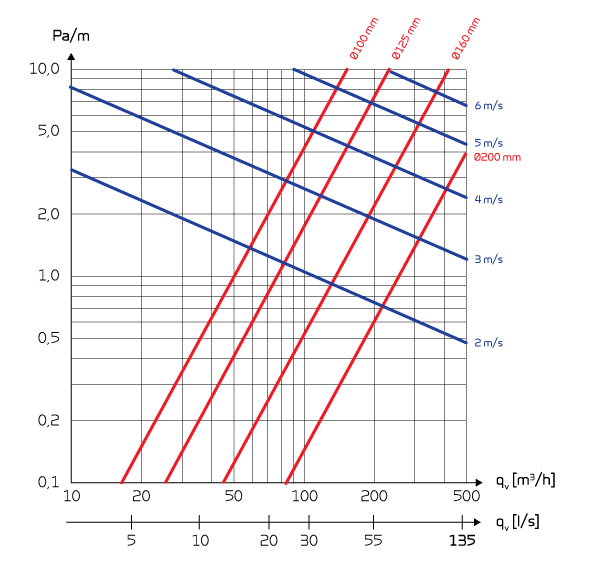

Pressure loss per meter.

Sizes:

Ø100 mm (length 6 m)
Ø125 mm (length 6 m)
Ø160 mm (length 8 m)
Ø200 mm (length 6 m)
