Cooker hood - Thermex Airslim

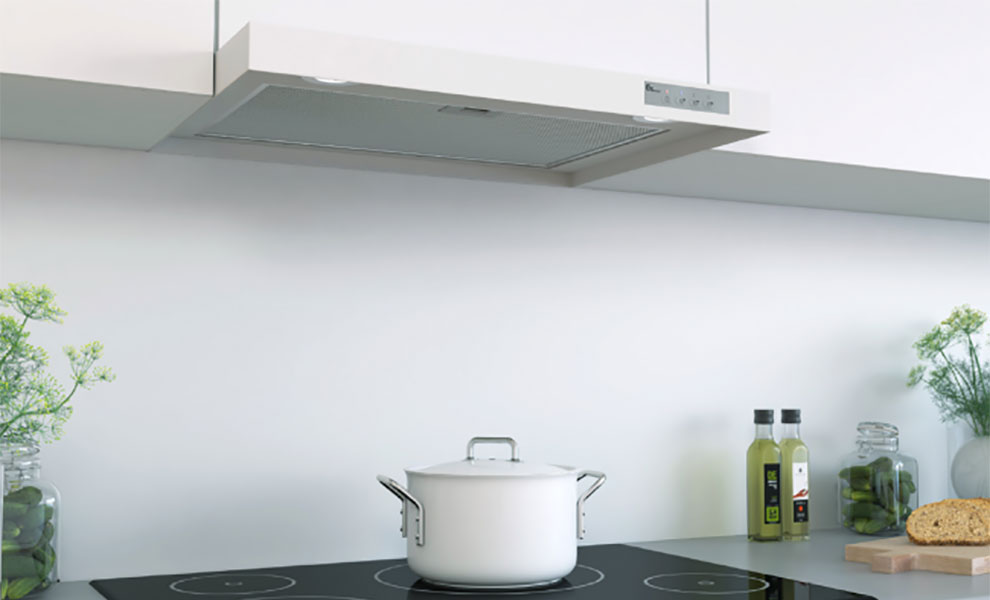

If you want the cooker hood to extract air via the ventilation unit, Nilan can supply a Thermex Airslim cooker hood for installation in a top cupboard.

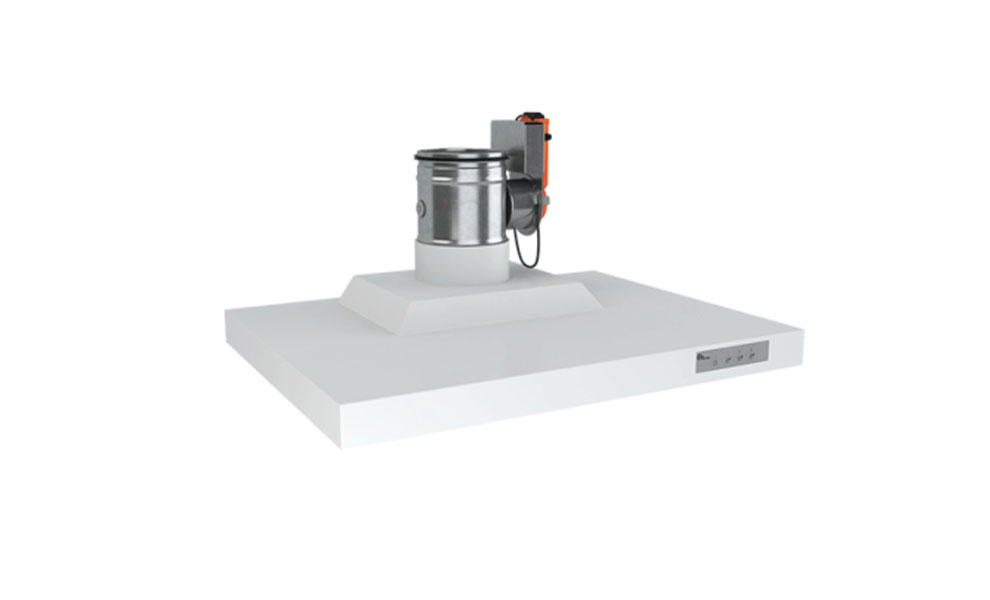

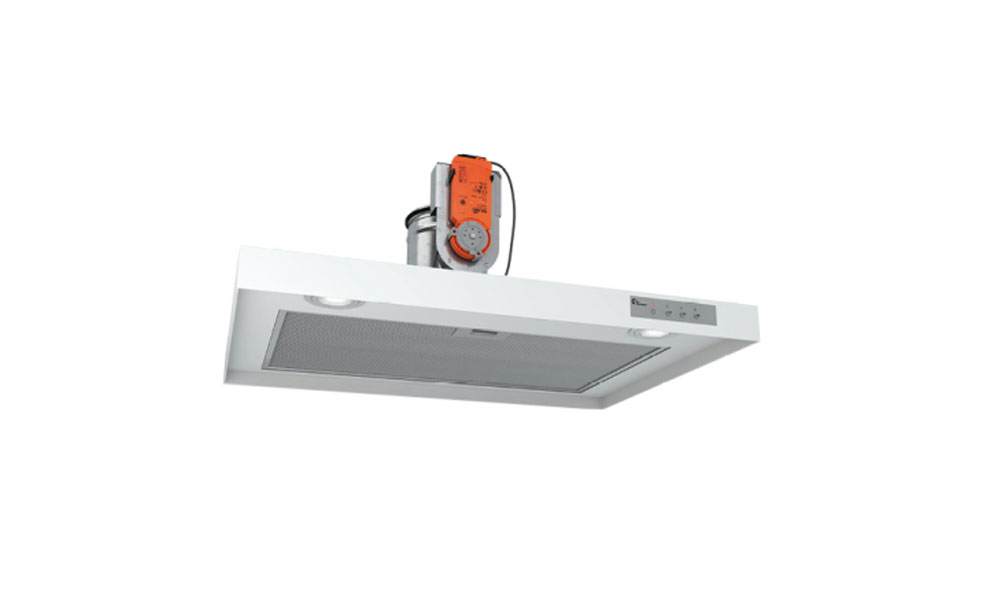

The cooker hood has no motor but is connected up to the ventilation unit. When extraction is required, you turn on the cooker hood. It then sends a signal to the ventilation unit which increases air extraction in order to achieve a high enough volume.  At the same time the supply air is increased to ensure balance in the ventilation process and to prevent negative pressure in the dwelling.

It can be necessary to connect up an EM-box or a DTBU damper. It will regulate the extract air by ensuring that the cooker hood extracts as much air as possible when required.

Air volume up to 250 m3/h
Mounting Integrated in cupboard
Material White powder coated steel

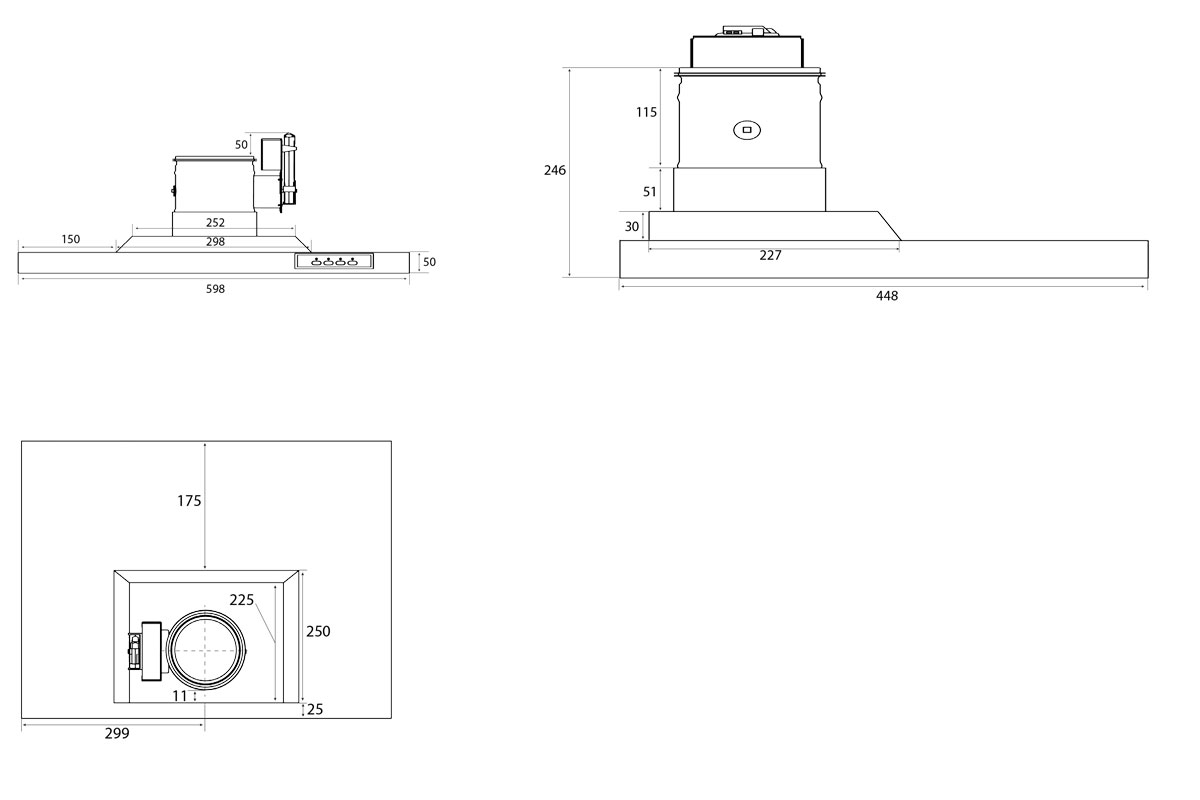

Width 600 mm
Filter Aluminium filter (dishwasher safe)
Lights 2 x 1,5W LED (2900K)
  • Is available made-to-measure at added cost (only with purchase of min. 50)
  • Dampers can be delivered with initial adjustment carried out
  • Dampers can be adjusted from fully closed to fully open
  • Dimmable lights are available as an optional extra
  • Filter indicators are available as an optional extra
  • Double potential free relay output
  • Product of excellent quality - thick steel, Belimo damper motor, high quality electronics etc.
  • Mount included for quick and easy installation
  • Timer function: 20, 40, 60 Min.
  • Produced in Denmark
