VPM 3200

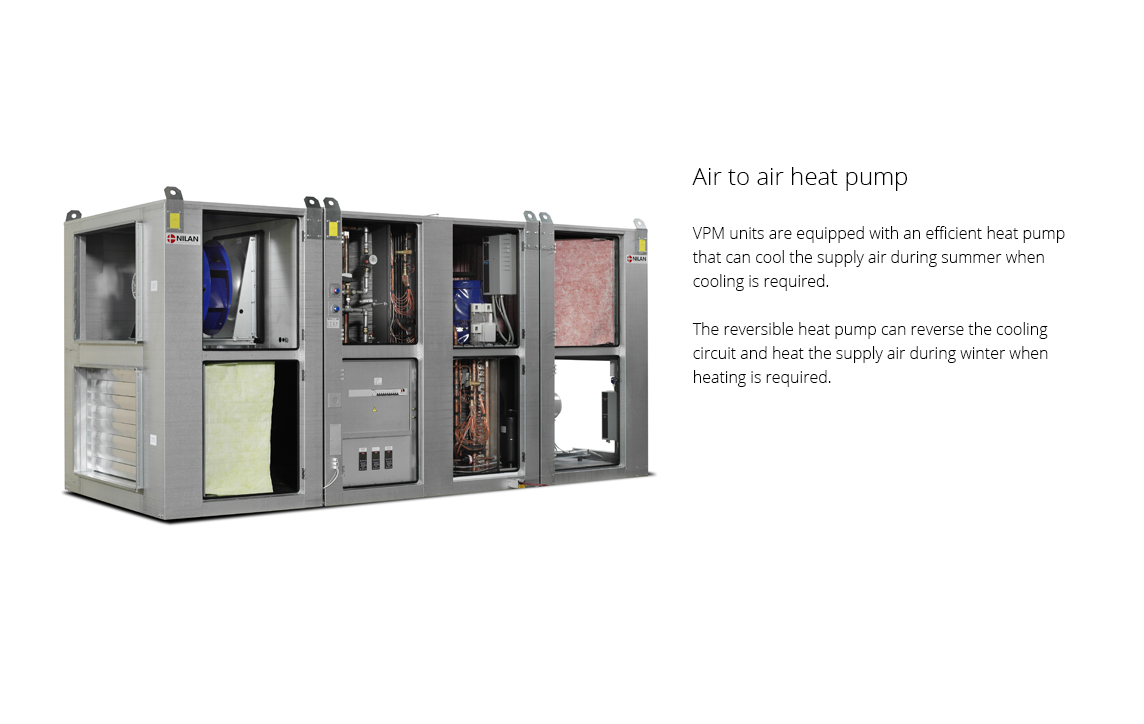

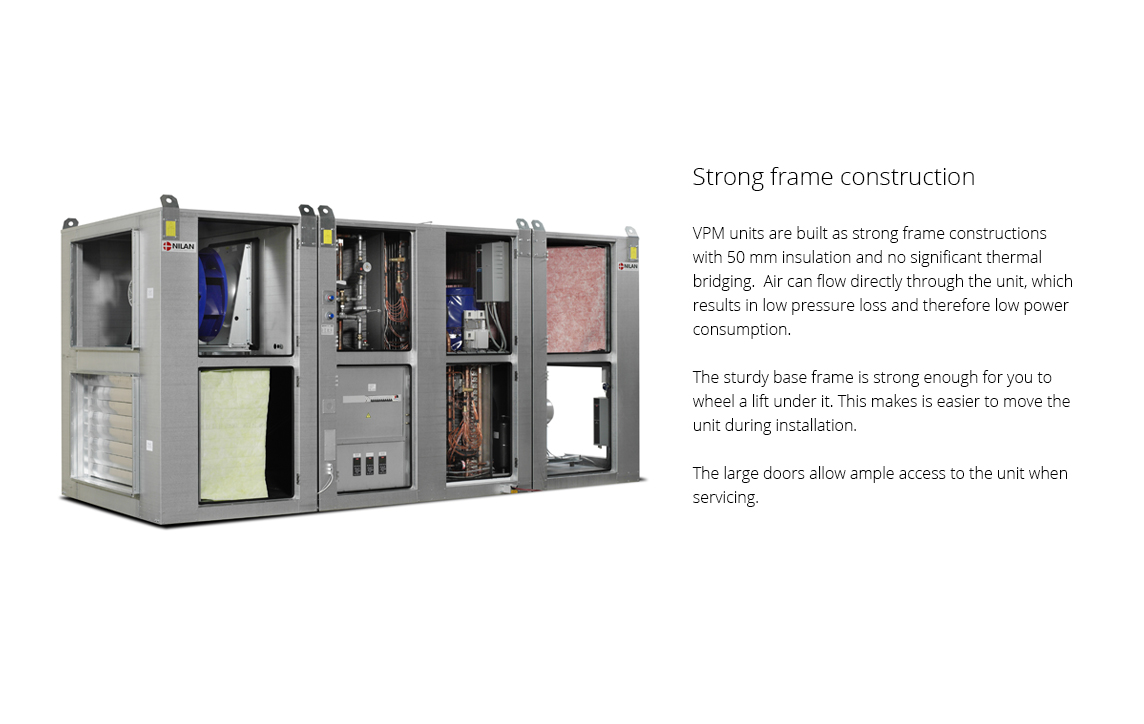

VPM 3200 is a ventilation unit with heat recovery via a reversible heat pump that can both cool and heat the supply air. The integral heat pipe increases both the cooling and the heating effect and it therefore ensures a good COP.

VPM 3200 is used for ventilating buildings with a requirement for good air quality, for instance if rooms or spaces with polluted air are ventilated via the central ventilation system. Such spaces could include commercial kitchens, lavatories and changing rooms. Extract air and supply air are kept separate, and particles will therefore not be passed from one to the other.

The heat pump is integrated in the unit, and it is therefore a compact unit that does not take up much space in the building. At the same time you avoid having to install an external cooling unit outside on the ground and on the roof.


Airflow (see planning data for SEL/SFP values)

Min : 10000 m3/h
Max : 36000 m3/h
Dimensions (W x D x H) 5470  x 2510 x 2730 mm
Weight 3970 kg
Plate type casing Aluzinc steel plate
Fan type Low-energy EC-ventilators with B-wheel
Filter class Standard bagfilter ISO ePM10 >60% (M5) extract air and ISO ePM1 50% (F7) fresh air
Duct connections (HxW) 1000 x 2000 mm
Condensate drain PVC Ø 32 x 1,5 mm
Power supply 3 x 400V + N, 50 Hz
CTS Control CTS 6000
Tightness class DS/EN 1886 L2
Refrigerant cooling heatpipe R 744 (CO2) / 2 x 5 x 2,6 kg
Compressor on/off, Maneurop type: MTZ (Fixed speed) / VTZ (variable speed) - configuration dependent
Refrigerant cooling circuit R 407 C / 45 kg
Condenser/evaporator (HxW) 1260 x 2080 mm
Condensation capacity 13,5 l/h (25°C / 70% RH, nominal airflow)





Capacity

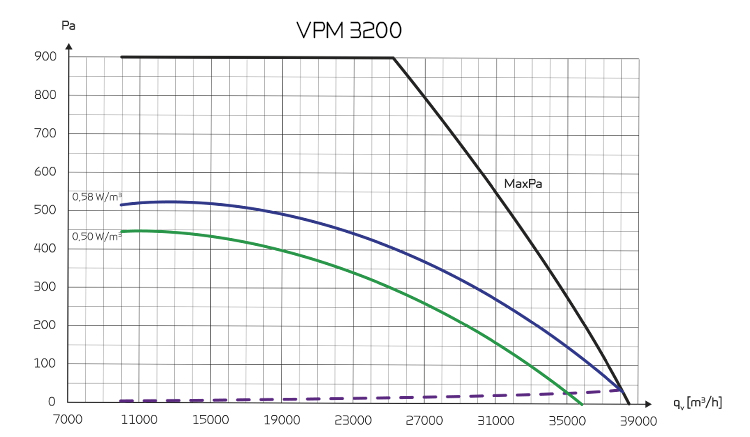

Max Pa capacity of standard unit, Pt,ext as a function of qv, with regard to SFP-values.

SFP-values according to EN13053 for a standard unit with ISO ePM10 >60% (M5) & ISO ePM1 50% (F7) filters an no heating element.

Attention! The SFP values are measured and stated as a total value for both fans.

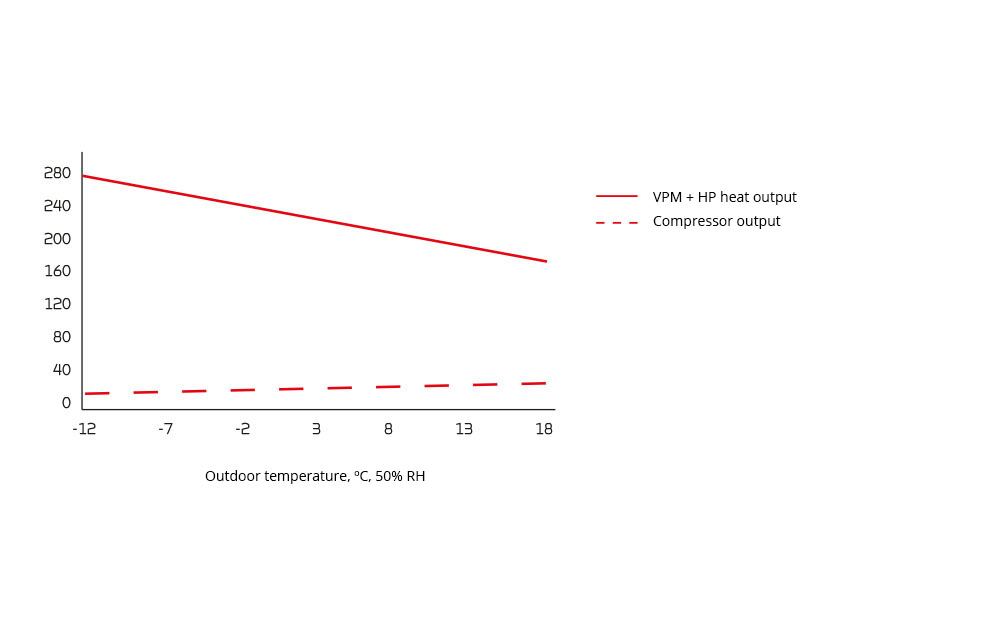

Heating effect (supply air)

Heating effect Qc [W] as a function of qv 32,000 m3/h and outdoor air temperature [°C].

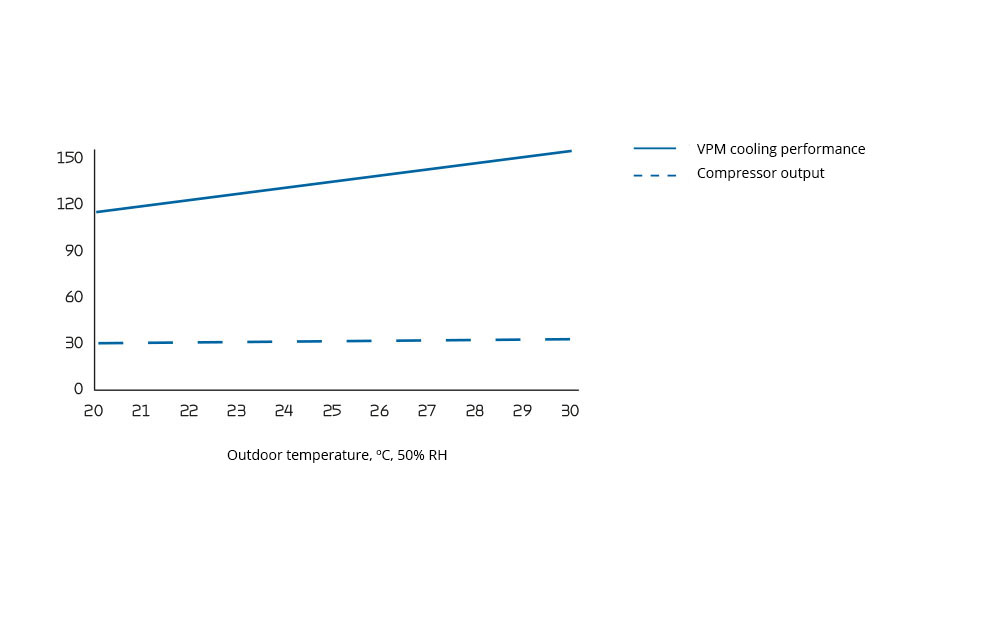

Cooling effect

Supply air temperature [°C] as a function of outdoor air temperature [°C] and volume flow qv 32,000 m3/h balanced flow

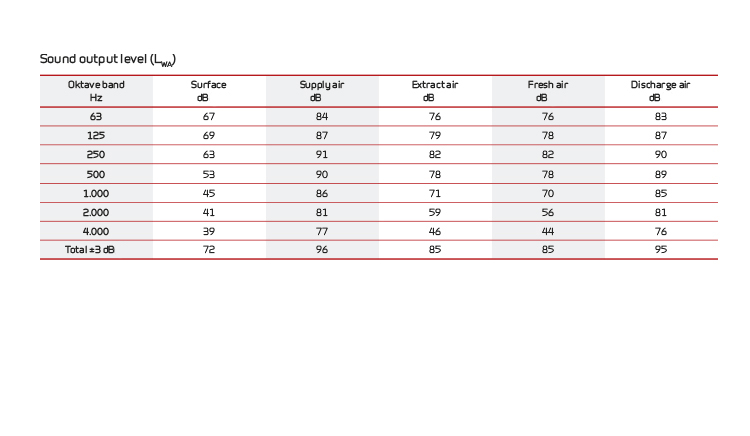

Sound data

Sound data for qV = 32,000 m3/h and Pt, ext = 250 Pa according to EN 9614-2 for surfaces and EN 5136 for ducts.

Sound output level LWA drops with falling air volume and falling back pressure.

Sound output level LpA at a given distance will depend on acoustic conditions in the place of installation.

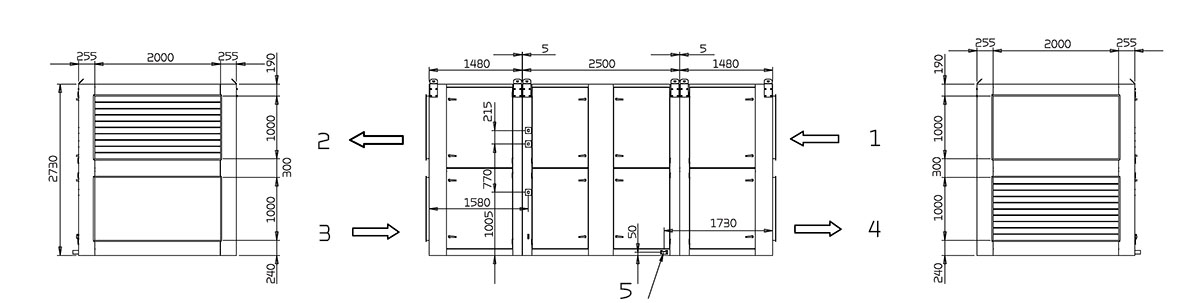

Dimensional drawing VPM 3200:

Connections
1: Fresh air
2: Supply air
3: Extract air
4: Discharge air
5: Condensate drain

Nilan CTS 6000 enables you to control and monitor Nilan commercial ventilation units online via a computer. You can access your units from anywhere in the world. By using a weekly or annual program, the unit can be set to operate automatically with regards to e.g. operating times, room temperatures, fan speed levels and alarms.

The CTS 6000 enables you to monitor the operating mode of the unit closely. Whoever it concerns will automatically be notified via email about all types of operational disruptions, alarms, and maintenance notifications. Operational disruptions can then quickly be dealt with and, at the same time, you will safely know when to carry out maintenance and when to plan services.

Functions
• Online program for controlling and monitoring Nilan’s commercial ventilation units
• Controlling and monitoring unit via computer
• Automatic control via weekly or annual program
• Setting temperature control, night cooling, pressure limits, alarms, fan speed level etc.
• Historical curves for temperature, air volume, heating, and cooling requirements
• Trend curves displaying current operation of the unit
• Automatic alarm notifications via email regarding operating mode, errors and maintenance
• Connection to room thermostats and frequency converters
• Adapting user interface to different user levels

Advantages
• You can control and monitor your units from anywhere in the world
• A weekly or annual program ensures detailed regulation of the indoor climate to meet the requirements of the individual building
• The automatic and intelligent control system ensures optimised operation
• Historical graphs enable you to optimise operation and the indoor climate
• Speedy diagnosis of potential operational disruptions or errors means that they can be dealt with quickly
• Better opportunity to provide remote support and therefore also to plan services
• User friendly control panel where the user interface can be adjusted according to personal preferences

Add-on
You can purchase a LON/Modbus card so you can connect the unit to an external CTS system that communicates LON or Modbus.

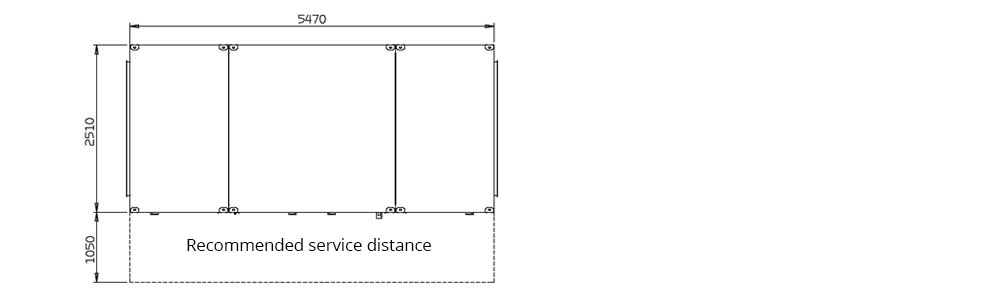

ATTENTION! Good clearance in front of the unit is recommended. When positioning the unit, you should always consider future services and maintenance. It must be easy to replace filters and it must be possible to replace fans or other components. There must be space for easy cleaning of the unit. When cleaning the unit, water may run out of cleaning and condensation drains. There must therefore be space for mounting water locks at condensate drains as well as any.

The unit must be level to enable proper drainage from the condensate tray.

ATTENTION! The unit produces a limited level of noise and vibrations, but you should still take into account potential vibrations that can spread from the unit to individual parts of the building. In order to separate the unit from the underlying surface, it is therefore recommended that you fit vibration absorbers under the unit. There should be approx. 10 mm distance to other building components and to permanent fixtures.
