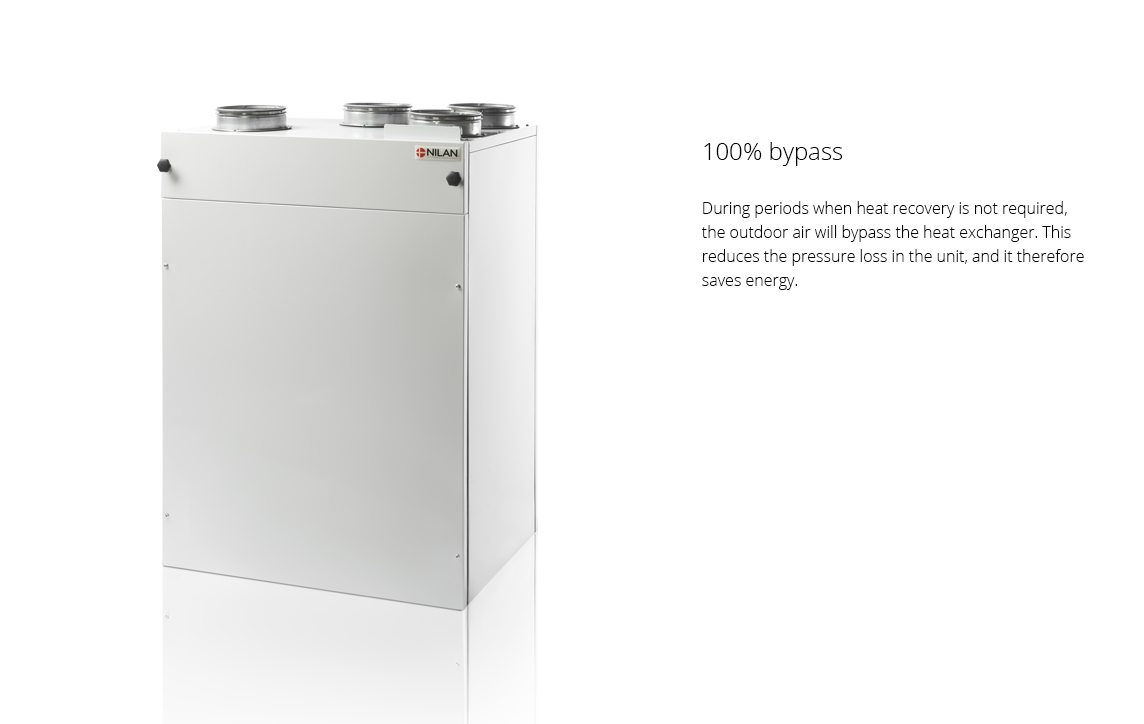

Comfort CT500

Comfort CT500 is a ventilation unit that is suitable for large single-family dwellings.

Ducts are connected to the top of the unit, and the unit is therefore suitable for installation inside the dwelling. The white exterior of the unit means that it sits naturally with other domestic appliances in the utility room or machine closet.

Comfort CT500 is well insulated so you also have the option of installing it outside the climate screen.

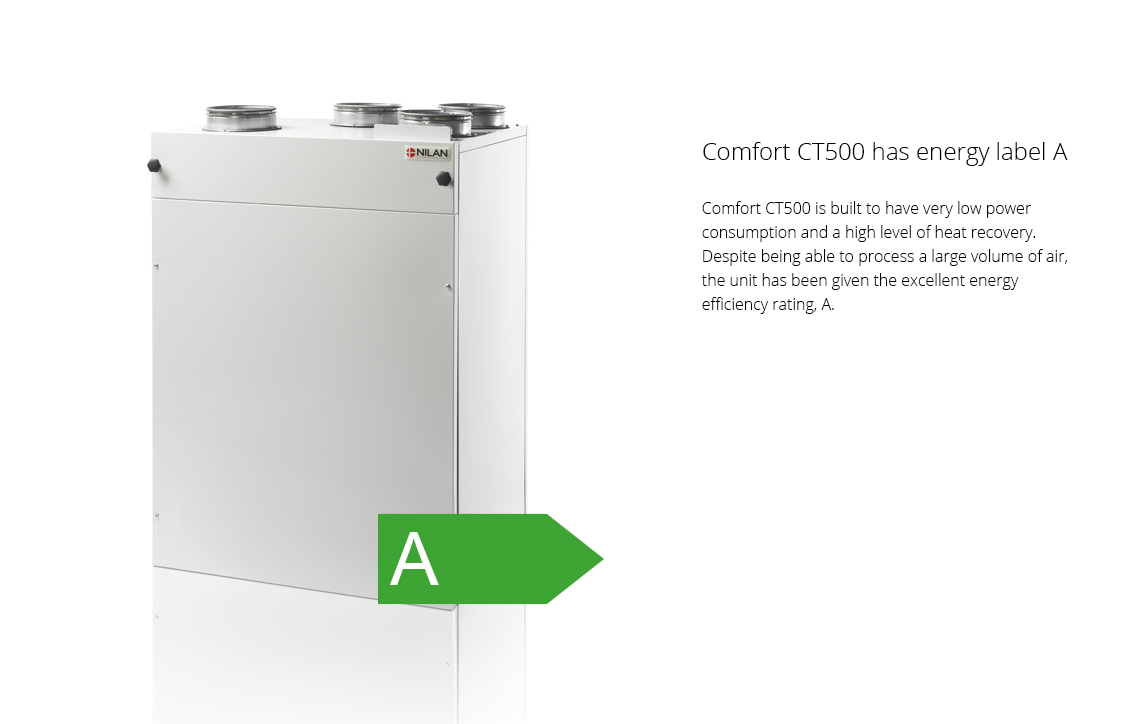

The unit has Passive House certification, which means that it is suitable for installation in low energy houses that have been developed in accordance with the Passive House concept. Comfort CT500 has low power consumption and the unit has energy label A.


Airflow (see planning data for SEL/SFP values)

Min : 100 m3/h
Max : 500 m3/h

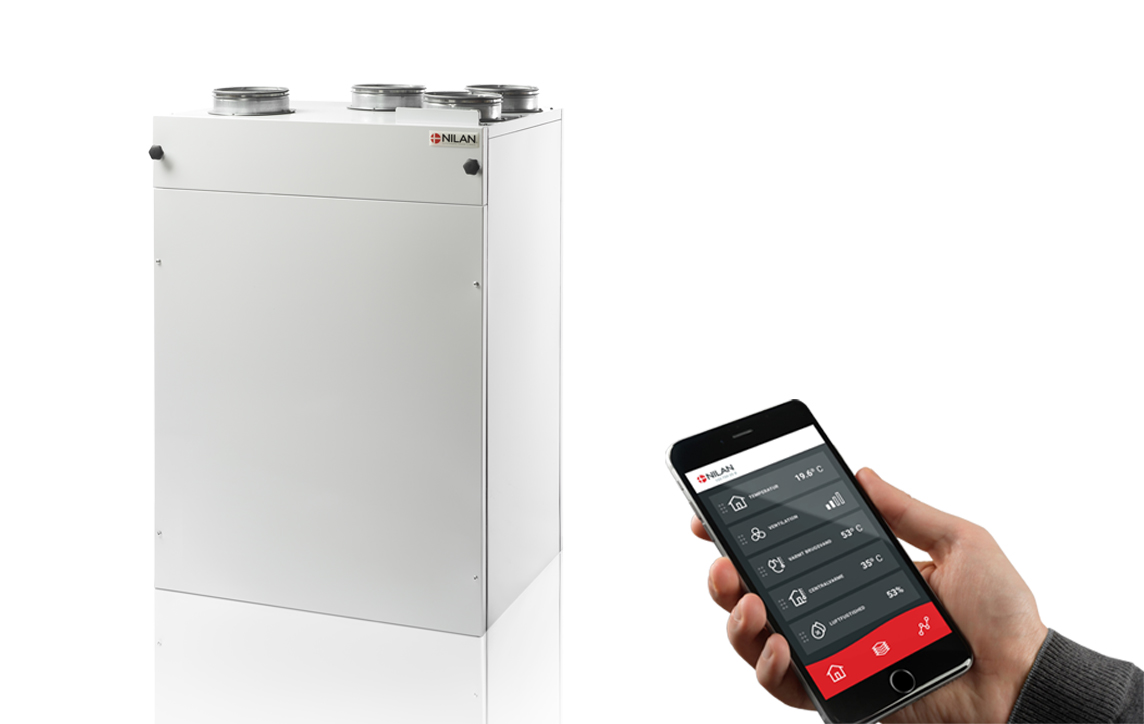

Nilan APP - Control the ventilation and heat pump directly from the mobile phone

Nilan has developed a new APP with great features where the user can control the ventilation and heat pump directly from the mobile phone. The APP is intuitive, easy and safe to use, and allows the user to e.g. set the room temperature. More ventilation units can be connected using the same APP to control the indoor climate in e.g. both the dwelling and the holiday home. More users can be connected the same APP.

When purchasing a Nilan gateway, the user can access the unit via the Nilan APP.

Get more information on the Nilan APP



Dimensions (W x D x H) 715 x 583 x 1000 mm
Weight 59 kg
Plate type casing Aluzinc steel plate, white powder coating RAL9016
Heat exchanger type Polyethylenterephthalat counter flow heat exchanger

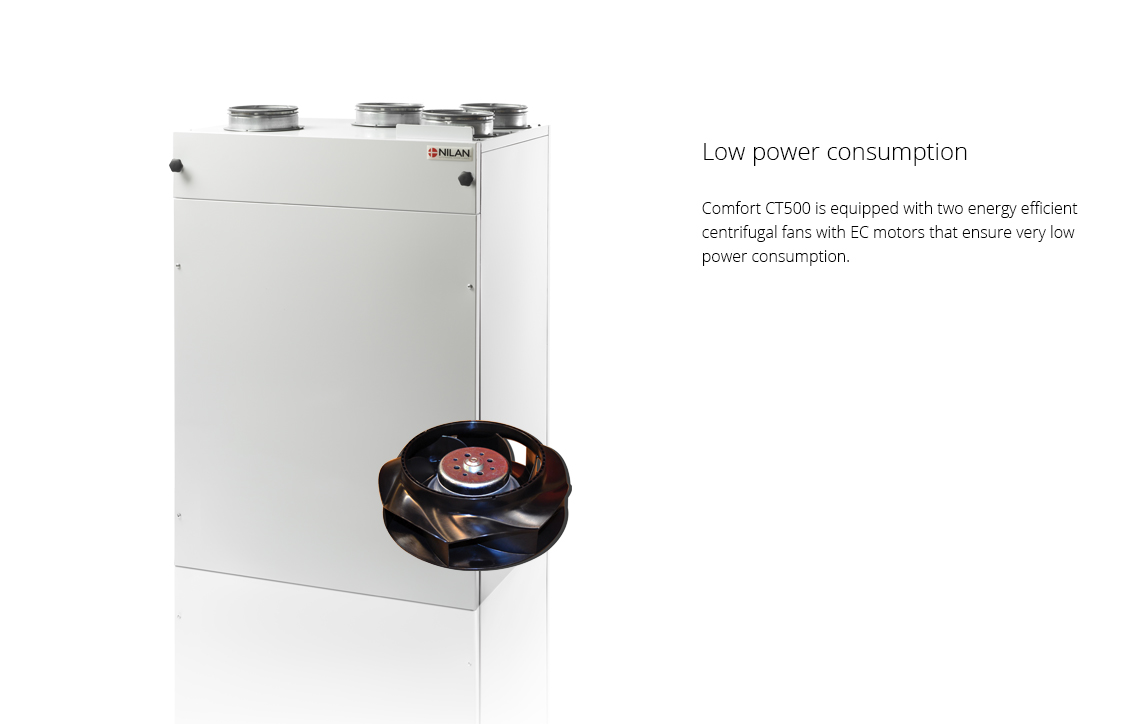

Fan type EC, constant volume
Filter class ISO Coarse > 65% (G4)
Duct connections Ø160 mm
Condensate drain PVC Ø20 x 1,5 mm
Supply voltage 230V 50/60 Hz
Max. input/power 338 W / 1,5 A
Standby power 3,4 W
Tightness class IP31
Ambient temperature -20 / +40 °C
Leakage classification A1 (*1)
Heat loss 0,82 W/m2K (*2)
Heat loss classification T2


*1 - Testet according to EN13141-7 (250 Pa)
*2 - Testet according to EN1886

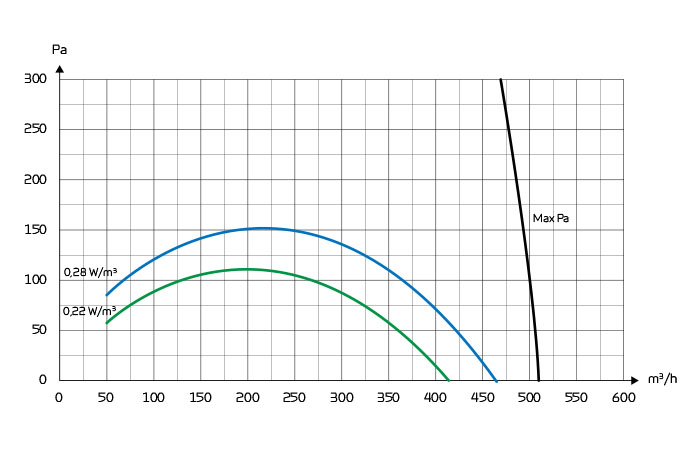

Capacity

Capacity of standard unit as a function of qv and Pt, ext.

SEL values according to EN 13141-7 are for standard units with ISO Coarse >65% (G4) filters and without heating element.

SEL values comprise the unit´s total power comsumption incl. control.

Attention! The SEL values are measured and stated as a total value for both fans.

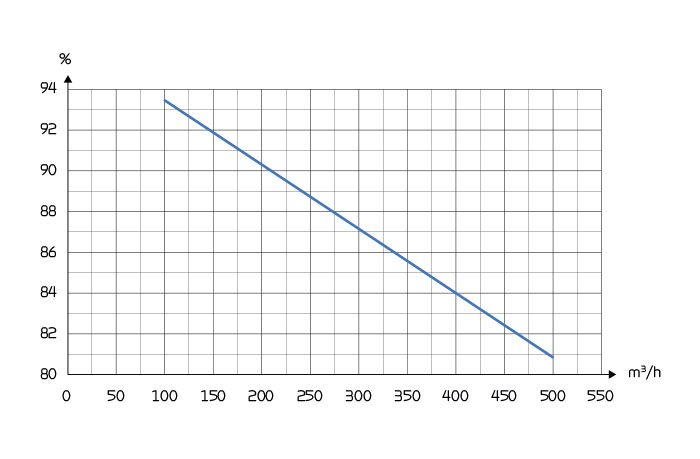

Temperature efficiency

Temperature efficiency for units with counterflow heat exchanger according to EN13141-7 (dry).

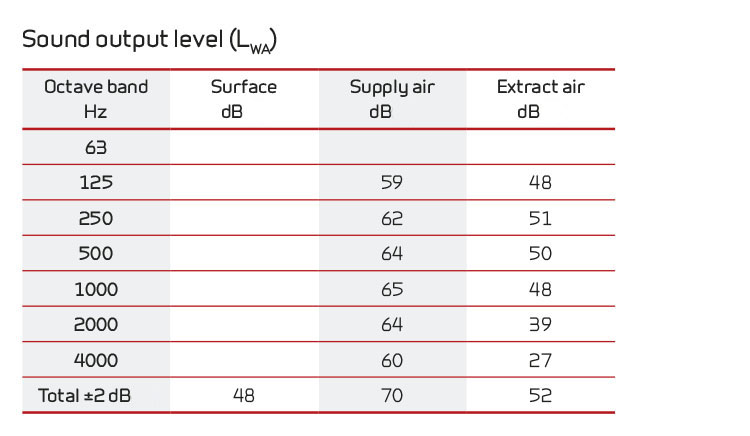

Sound data

Sound data for qV = 400 m3/h and Pt, ext = 100 Pa according to EN 9614-2 for surfaces and EN 5136 for ducts.

Sound output level LWA drops with falling air volume and falling back pressure.

Sound output level LpA at a given distance will depend on acoustic conditions in the place of installation.

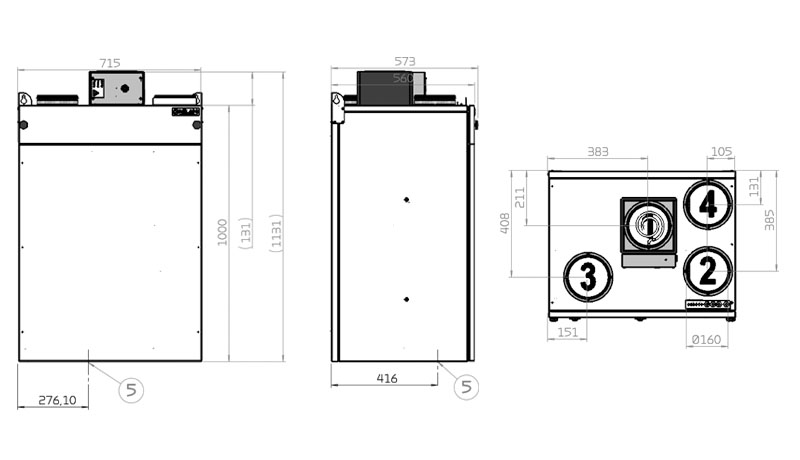

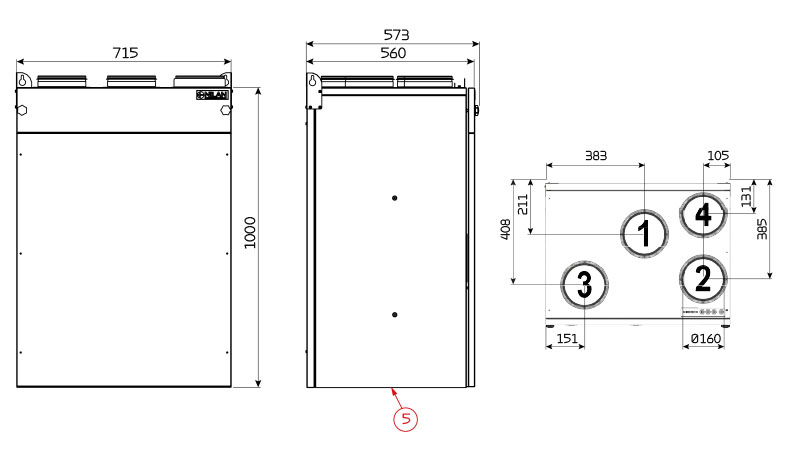

Dimensional drawing Comfort CT500:

All dimensions are in mm.

Connections:
1. Outdoor air
2. Supply air
3. Extract air
4. Discharge air
5. Condensate drain

The CTS602 control system is an advanced control system with many settings options. The control system is supplied with factory default settings that can be adapted to the operational requirements in order to achieve best possible operation and utilisation of the unit.

The HMI Touch panel provides an overview of the current operation of the unit, and the structure of its menu makes it easy to navigate for both user and installer.

External communication

The CTS602 control system has an open Modbus RS485 protocol that can be used for communication via external CTS systems.

Functions overview   +Standard
-Accessories
Alarms Description of errors indicated with alarms. Alarm log displaying the latest 16 alarms. +
Joint alarm The CTS602 control system has an output signal that is activated in the case of an alarm. It can be connected to, for example, external automation.

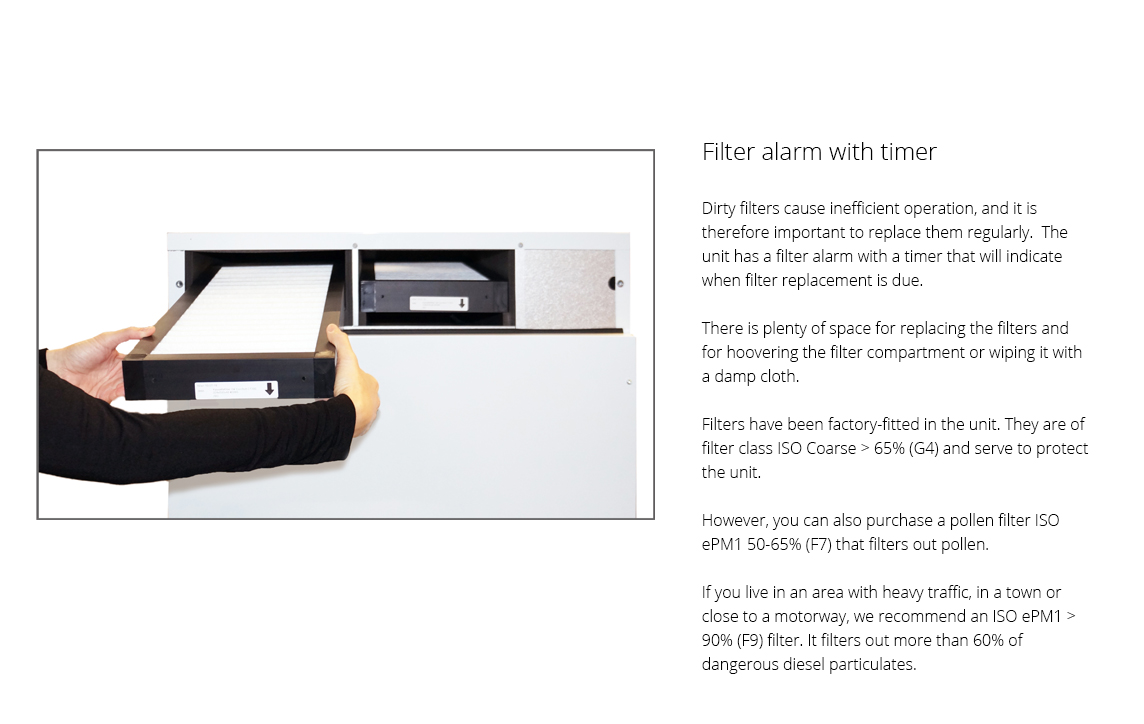

Filter monitor Filter alarm with timer that can be set to 30/90/180/360 days. +
Data display An overview of the current operation with regards to temperatures, fan speed level etc. +
Week program The CTS602 control system has 3 week programs that can be set individually (the default setting is “off”). +
Humidity control system Enables a higher or lower degree of ventilation at a high/low level of humidity. +
Air quality Enables you to adjust the degree of ventilation depending on the CO2 level in the air. -
Winter low You can prevent a low level of humidity in the dwelling by activating low ventilation at low outdoor temperatures. +
Temperature regulation Enables you to control the operation of the unit in accordance with the room temperature. +
Summer/winter mode You can set the unit to operate in summer or winter mode.
Language You can choose from more than 10 languages in the control panel. +
User levels The menu in the control panel is divided into 3 user levels: User/Installer/Factory. +
User selection 1 Enables you to override the operating mode via an external potential free signal. +
User selection 2 Enables you to override the operating mode as well as user selection 1 via an external potential free signal. -
Electrical after-heating element An electrical after-heating element allows you to control the supply air temperature. In this way the unit can help heat the dwelling. -
Water after-heating element A water after-heating element allows you to control the supply air temperature. In this way the unit can help heat the dwelling. -
Frost protection In order to protect a potential water after-heating element against frost damage, the unit will stop and display an alarm if the temperature in the water after-heating element becomes too low. -
Air exchange Stepless setting of four fan speed levels. The supply air and the extract air can be set individually. +

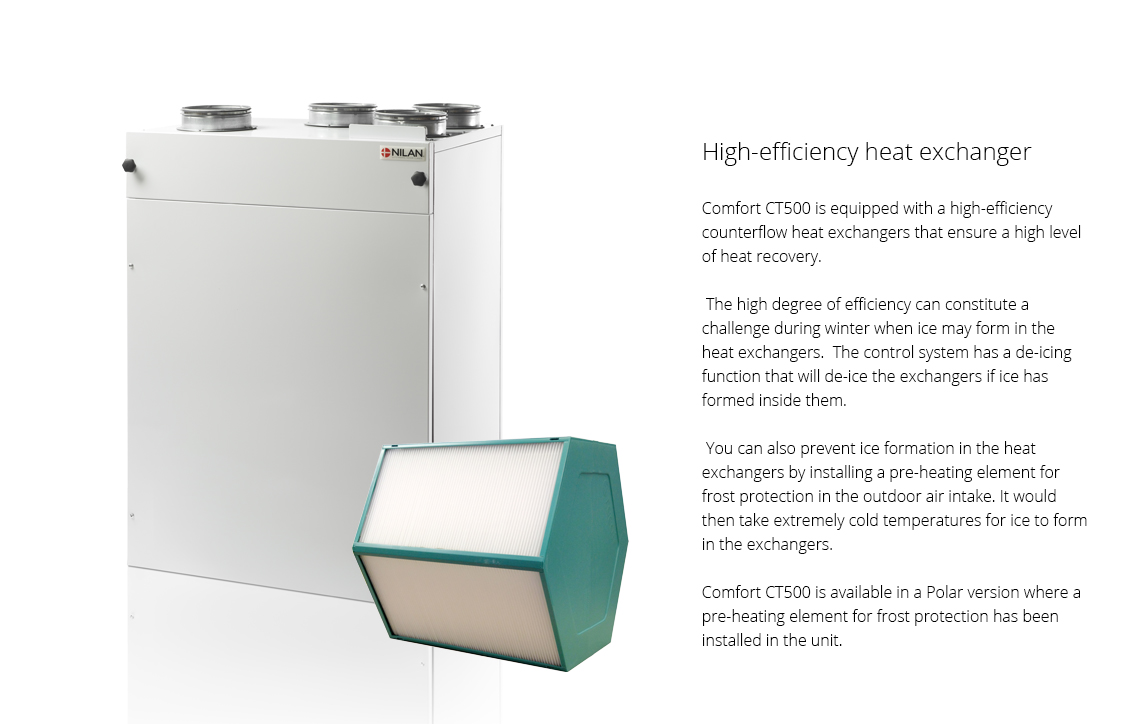

De-icing Based on temperature, this automatic function de-ices the counterflow heat exchanger if ice has formed within it. +
Room low Safety function that will cause the ventilation unit to stop if the heating system for the dwelling fails. This will prevent the unit from cooling the dwelling even further.  +
External heating The ventilation unit can control an external heat supply in accordance with the current room temperature. +
External fire automation system You can connect the ventilation unit to an external fire automation system or to a fire thermostat. This will signal to the unit whether to stop or continue operation. +
Integral fire automation system The ventilation unit is available with an integral fire automation system that can control fire and smoke dampers. -
Pressure sustaining regulator You can install a pressure sustaining regulator on the side of both the extract air and the supply air. -
Delayed start-up You can activate a delayed start-up of the fans if you install, for instance, a shut-off damper. +
Restore settings You can save the current settings and subsequently restore them if, for instance, the user has altered the settings on the unit. You can also reinstall the default settings. +
Manual operation Different functions can be tested manually. +
Energy saving function You can activate a power saving function of the operation. +
Modbus  You can set the Modbus address of the unit. The default setting is 30. +
Data logging It is possible to log the operational data of the unit every 1 - 120 min. Alarms are logged when they occur. +
Control panel You can choose from 2 different images for the main screen. +

You can find further information about all the functions in the Software and Installation instructions for the unit.



ATTENTION! When positioning the unit, you should always consider future services and maintenance. An open space of minimum 60 cm in front of the unit is recommended.

It must be easy to change filters, and it must, for instance, be possible to remove the heat exchanger, and to replace fans or other components.

ATTENTION! The unit must be level to enable proper drainage from the condensate tray.

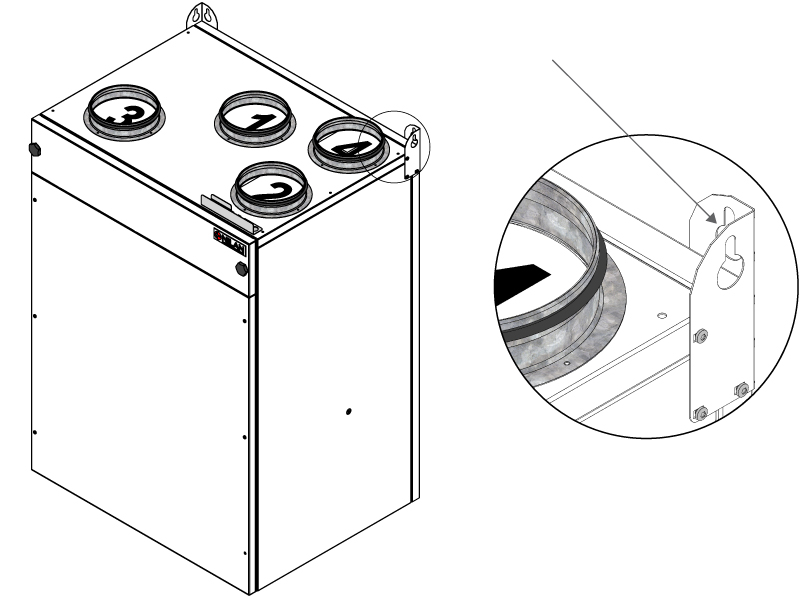

The unit is equipped with mounting brackets with holes for wall mounting at the top back of the unit.
